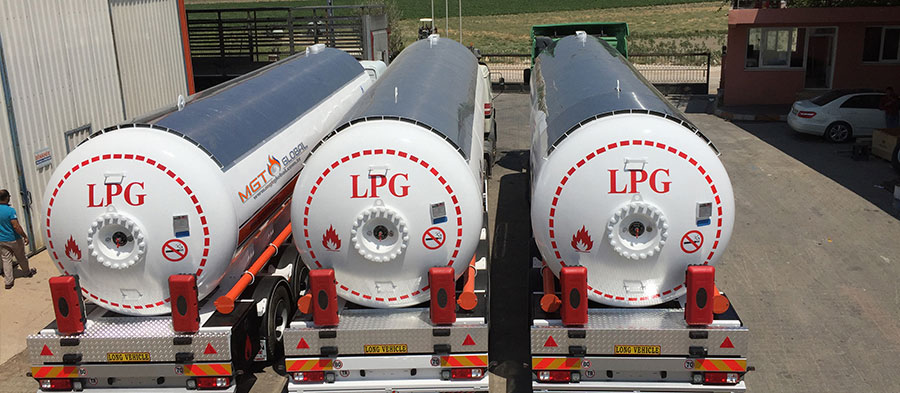

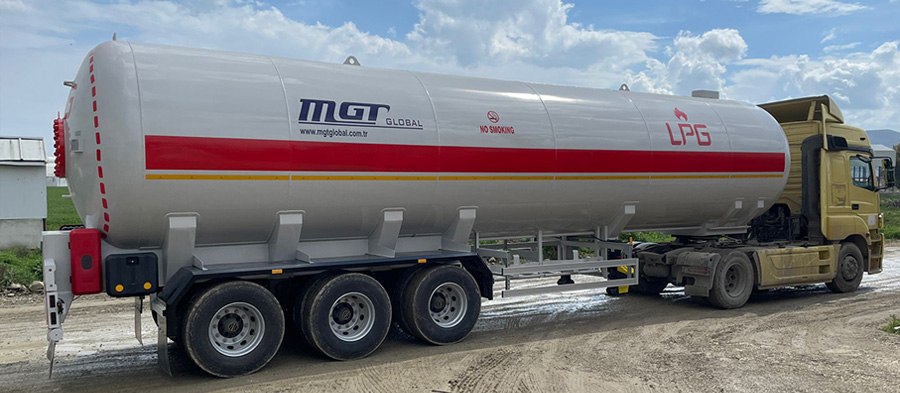

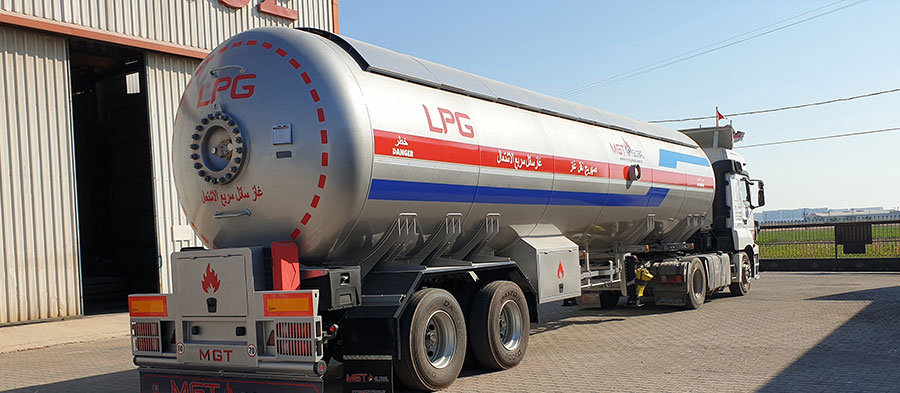

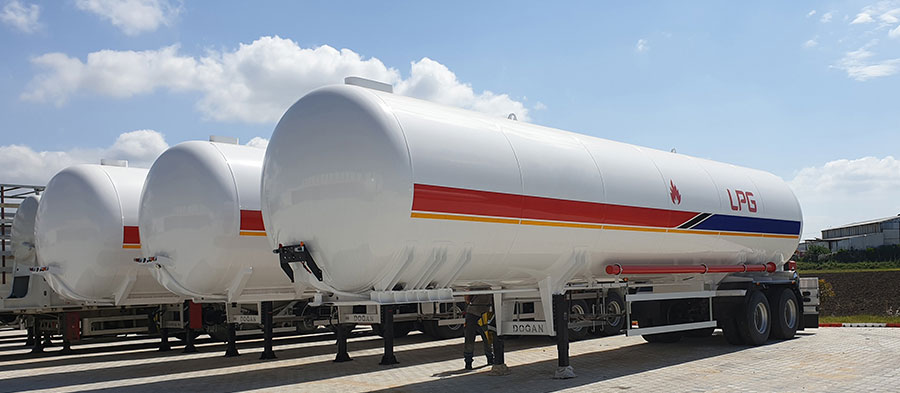

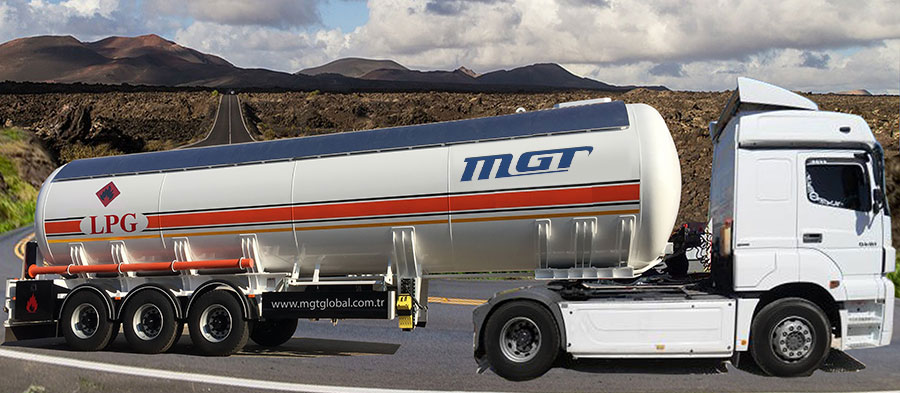

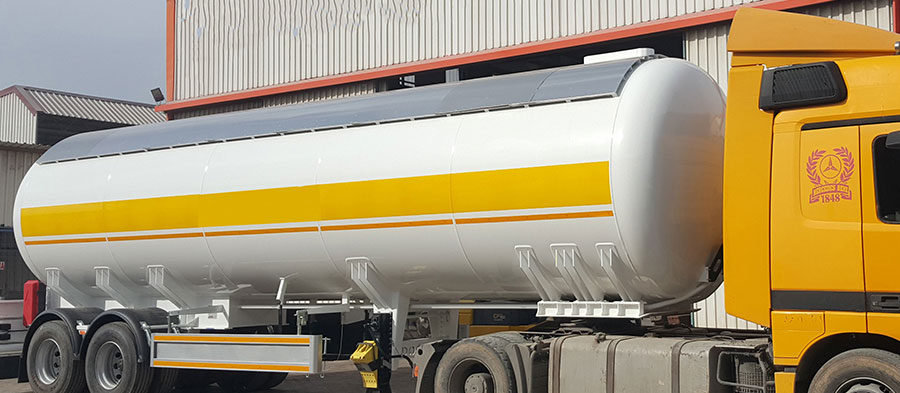

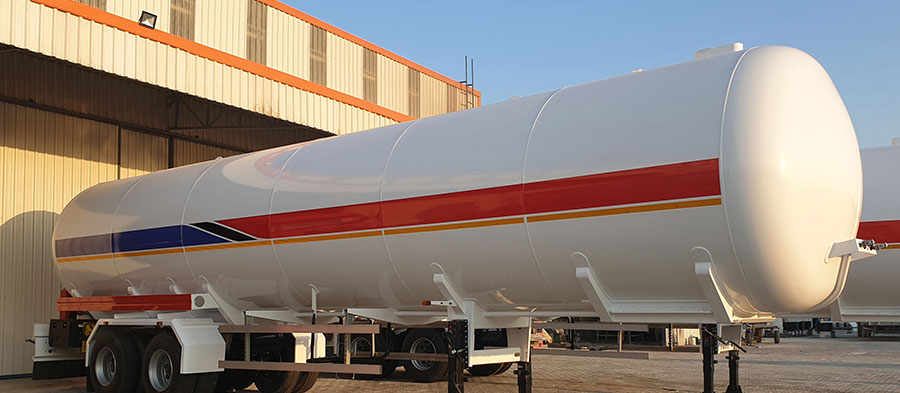

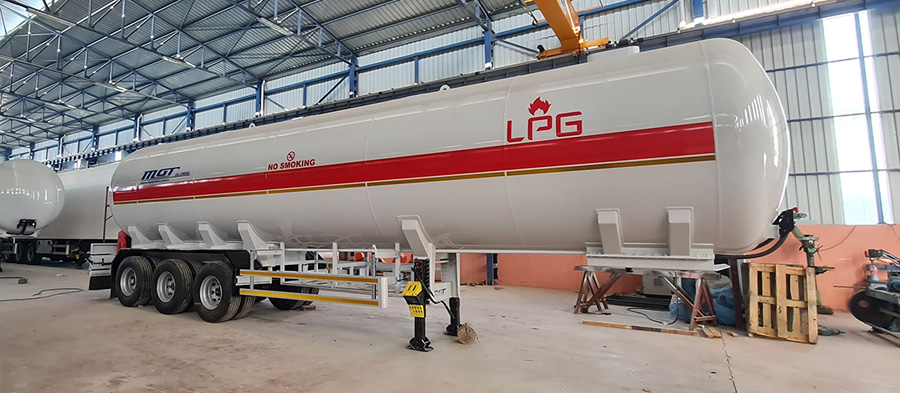

LPG SEMI-TRAILER TANKS
- LPG is a mix of propane (C3H8) and Butane (C4H10)
- LPG Semi Trailer tank used to transport and distribute LPG to the plants that use LPG gas
- The capacity of semi trailer can be 30- 60 m3
- The kind of axles can be mechanical or air suspension, it depends on the country and its laws and depends on the nature of roads in the country will work in
- The welding tests that can be done: UT (Ultrasonic Test) and RT (RadiographicTest) for joints, BT Test will be done for welded flanges
- The hydrostatic test will be done by water pressure according to code by THIRD PARTY
TECHNICAL SPECIFICATIONS
Download catalogue| DESIGN PARAMETERS FOR SEMI TRAILER (PRESSURE VESSEL) | |
|---|---|
| Design Code | AD 2000 MERKBALTTER, EN 12493, EN 13445, ASME CODE and other codes |
| Capacity | (30 - 60 m3) According to request |
| Body Type | Horizontal, Cylindrical |
| Heads Type | Elliptical or Hemispherical, Heat treatment 600 C º |
| Material | SA 516 Gr 70 / EN-10028.3 (P355NH-P355NL1) / EN-10028.2 (P355GH-P265GH) |
| Design Temperature | (-20 C° / +70 C°) |
| Design Pressure | 17,1 - 22BAR |
| Test Pressure | 26,25 – 31,5 BAR |
| Welding | SAW -Submerged Arc Welding |
| Piping | SCH 40, SCH80 seamless pipes |
| Tests | UT (Ultrasonic Test) - X-Ray :RT (RadiographicTest) - BT (Beta Test), Hydrostatic Test |
| Paint | Sandblasting will be done firstly, 2 layers of epoxy base paint, then 2 layers of paint. |
| TECHNICAL SPECIFICATIONS FOR CHASSIS (SEMI-TRAILER) | |
|---|---|
| Chassis | Carbon steel ST52 |
| Axles | 9, 12, 14 and 16 Ton available,(2 ,3 and 4 axle) available, (DISK, DRUM) available- SAF, BPW, Turkish brands available |
| Suspension System | Air Suspension, Mechanical Suspension and all other systems are available |
| Landing Gear | 25 Ton Dynamic , 50 Ton Static - 2 speeds - JOST , SAF, OMS…. Etc |
| Tires | 385/65 R22,5 , 1200 R 24 and all sizes of tires available, Tires Brands (BRIDGESTONE, LASSA,GOODYEAR etc …) |
| Rims | R22,5 - R24 |
| King-Pin | DIN Standard 2 ‘’, 3 " available |
| Brake System | According to standards ADR - WABCCO |
| Lighting System | According to standard (ADR) - SABA - SERTPLUS |
| Paint | Sandblasting will be done firstly, 2 layers of epoxy base paint, then 2 layers of paint . |
| Accessories of Chassis | Spare tire carrier, water tank, fire extinguisher, toolbox … etc |
